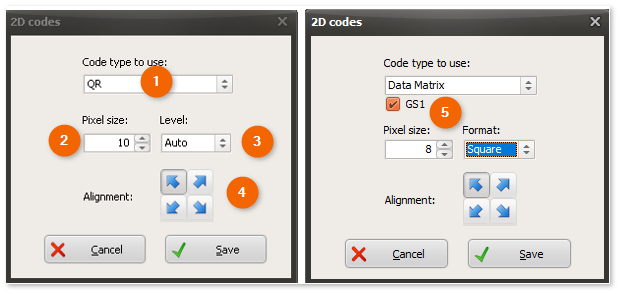

In the layout, select the field to be changed to 2D code and click here.

Change the pixel size of the 2D code.

Specify the type of 2D code:

•Datamatrix

•QR

•Micro QR

Fun facts:

The DataMatrix always has a bright square in the upper right corner.

QR codes usually contain three black boxes: bottom left, top left and top right.

These boxes confirm to a QR reader that it is reading a QR code and where the outer limits of the code are.

QR stands for "Quick Response".

Select the error correction level. NOTE! A higher correction level will result in less storage capacity in the code.

QR and Micro QR: Auto, L (7%), M (15%), Q (25%) or H (30%).

Specify the corner to which the 2D code should align.
